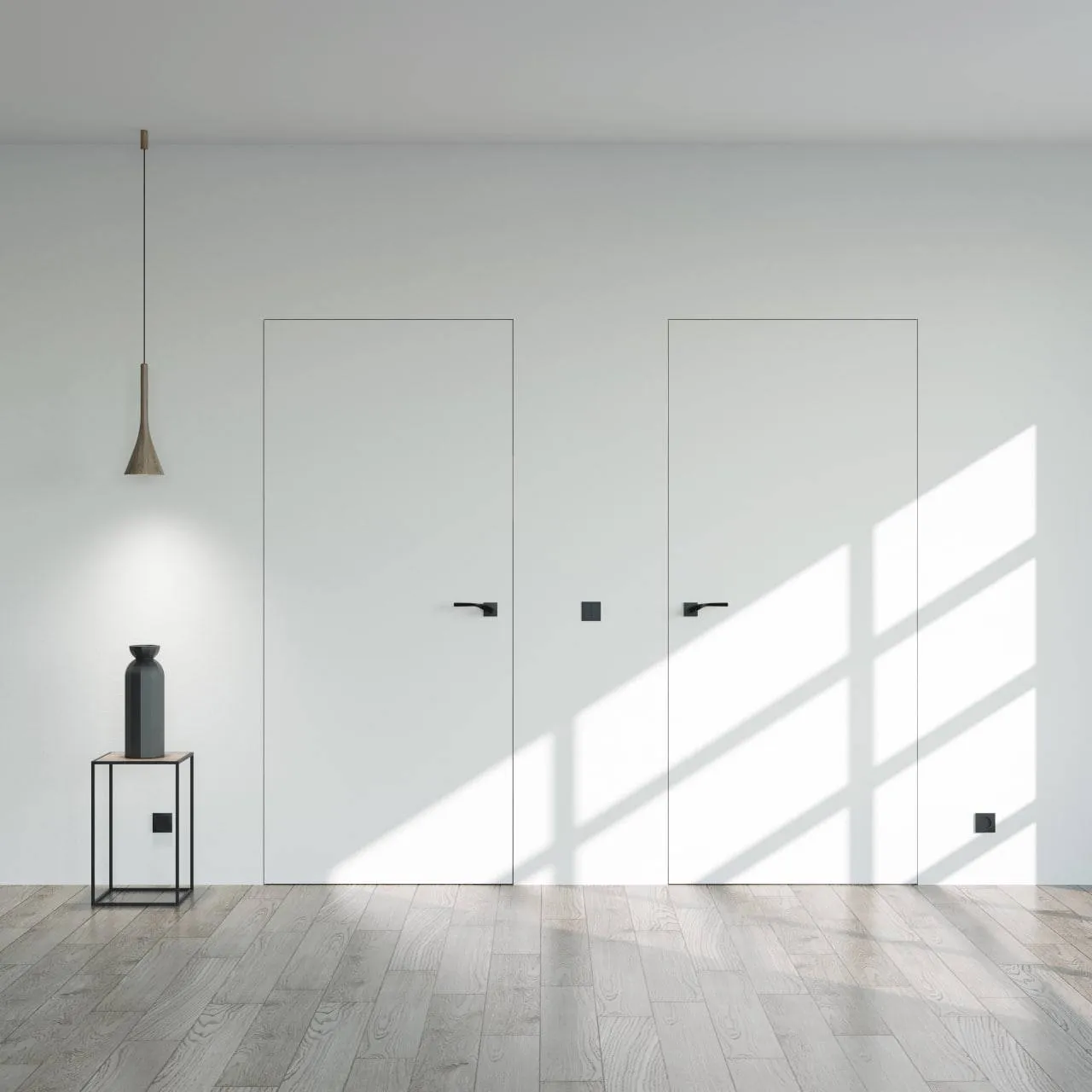

INTERIOR HIDDEN DOORS

MORE DETAIL

PRODUCT

ALUMINIUM PROFILES

FRAME for 40/45 mm doors
‍SIZE - 5300 mm
‍Opening options: Inside, outside

DOOR FRAME

DOOR LEAF

The door from NoFrame done under your specification, could be prepared for painting or painted one.

The thickness of the door leaf is 40mm or 52 mm for the direction of opening to the outside or inside respectively and can be painted or an aluminum and the canvas is covered with high-quality soil.

The thickness of MDF is 6 mmOur door leaf filled with paper honeycomb ABS edges from 2 side.

6 mm MDF thickness

Complete set of hidden doors

door leaf
door frame
hardware
анкерні пластини

CONNECTOR

A special connector is used to connect the door elements.
‍
‍Benefits:
• Perfect 90 angle in 30 seconds.
• Perfect fit of door frame elements at an angle of 90 degrees. Unlike with products of other manufacturers, the assembly does not depend on the installer's experience when mounted in a tight fit and does not require extra skills.
• No rust in the corner due to use of ZAMAK.
• The connector is hidden within the frame profile with two particular guiding edges, making false assembly impossible.

HINGES IN A POCKET FROM NOFRAME

Features
1. A minimum of 200.000 cycles.
2. No milling or drilling required for the installation.
3. Closed pockets avoid plaster to get inside the hinge.
In our frames we use Otlav hinges (Made in Italy).

Without POCKET

Pocket for the hinge

Sealing by NoFrame

No sound
No light
No deformation

No Problems

Alternatives

NoFrame

Q-lon by Schlegel

SPECIFICATIONS

We offer a selection of standard door leafs, but we work flexibly and will be happy to meet any specific requirements from your side. Any required hardware milling is done by us.
Standard door leaf sizes:
Outside – 2000х600/700/800/900 mm.
Inside – 2010х600/700/800/900 mm.
‍
Individual door leaf sizes:
Outside - 2500 mm maximum height, 950 mm maximum width.
Inside - 2510 mm maximum height, 950 mm maximum width.
For door leaf dimensions exceeding 2510 mm in height and 950 mm in width, structures are calculated individually.
‍
The gap between the door leaf and the door frame is 3 mm.
The gap between the door leaf and the finishing floor is 10 mm.

SPECIFICATIONS

Technical information

Opening options

Inside right-hand opening direction

Outside left-hand opening direction

Inside left-hand opening direction

Outside right-hand opening direction

Video review of NoFrame hidden doors

Packaging

We provide two types of packaging:
- standard packaging;
- customised packaging.
‍
We believe you will appreciate the NoFrame packaging as we put strong emphasis on its high quality.
‍
All items are delivered in separate packages made of recycled materials.

We are dedicated to deliver out products in perfect condition.
